Master data transformation with Mage SQL Blocks

• Introduction

• Conjuring your first Mage SQL Block in the UI

• Weaving connections with upstream data sources

• Harnessing the arcane forces of raw SQL

• Executing multiple SQL statements in a single block

• Comparison of raw SQL Blocks vs. automated SQL Blocks

• Conclusion

In the rapidly evolving landscape of data engineering, professionals are constantly seeking tools to streamline workflows and boost productivity. As data pipelines grow more complex and data volumes surge, the need for efficient and flexible solutions becomes paramount. This is where Mage SQL blocks shine. They offer powerful features designed to revolutionize how data engineers approach SQL-based data operations. By combining flexibility, automation, and seamless integration, Mage SQL Blocks empower data engineers to streamline their workflows and unlock new levels of productivity.

This article will guide you on a journey from SQL novice to SQL sorcerer, equipping you with the knowledge and techniques to harness the full potential of this transformative tool.

Source: GIPHY

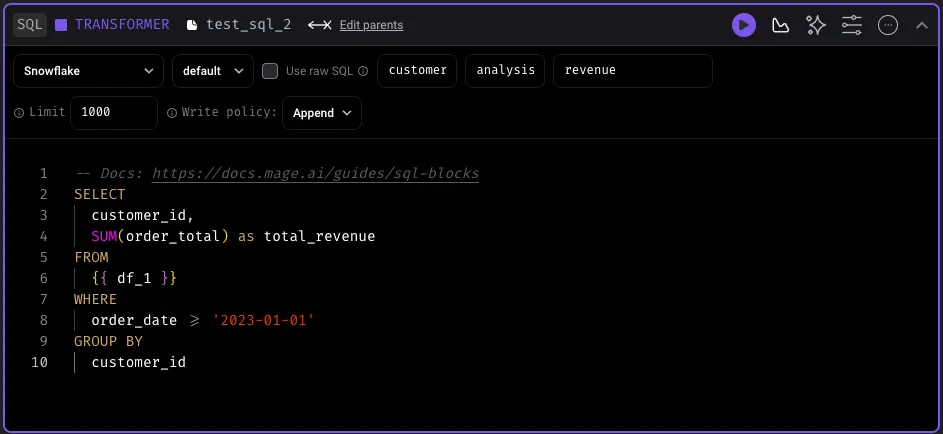

Let’s begin by creating your first SQL Block within the Mage interface. After selecting the “SQL” block type, you’ll encounter three key components that form the foundation of your data transformation journey:

Configuring Connections

: Mage provides a user-friendly interface for managing data connections. You can easily set up connections to various data sources, including data warehouses, databases, and other supported platforms. To set up a connection:

• Drop down the “connections” list in the top left of the SQL block and select your target connection

• Drop down the “profile” list and select the profile from the

  io_conflig.yml

  file you want associated with the SQL block

• Add a schema name and table name where the target data will be stored

• Once you add the schema and table the database text box will appear. Add the database where you intend to store the target data.

The target database, schema, and table will automatically be created if they do not already exist.

Writing SQL Queries

: The SQL Block editor offers a clean and intuitive interface for composing your queries. It includes features like syntax highlighting and auto-completion to enhance your coding experience.

Utilizing Write Policies

: One of the standout features of Mage SQL Blocks is the flexible write policies. These policies give you granular control over how new data interacts with existing data in your target tables, helping prevent unintended data loss or duplication. You can choose from three options:

• Append

  : Adds new data to the existing table without modifying existing records.

• Replace

  : Overwrites the entire target table with the new data.

• Fail

  : Stops the operation if the target table already exists, preventing accidental overwrites.

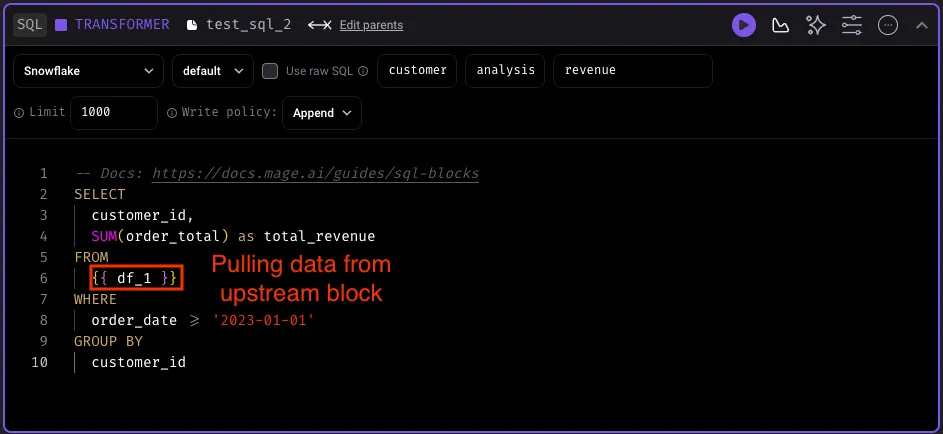

Mage SQL Blocks simplify the process of accessing data from upstream blocks, a feature that sets it apart from traditional SQL environments. You can directly reference upstream data using simple variables like

{{ df_1 }}

 or

{{ df_2 }}

, eliminating the need for complex data export and import steps. The upstream block can be a Python, R, or another SQL block. This gives you the flexibility to interchange transformation block types throughout your data pipeline. This seamless integration allows for more dynamic and efficient data pipelines.

While the automated features of Mage SQL Blocks are powerful, the platform also provides the flexibility to execute raw SQL commands, giving data engineers full control over their data transformations. When you click the “Use raw SQL” option in a SQL Block, you unlock a new level of control over your SQL statements. This mode allows you to write and execute complex SQL commands, including

CREATE

,

UPDATE

,

INSERT

 and other advanced database operations.

One of the key advantages of using raw SQL in Mage is the ability to execute multiple SQL statements within a single block, separated by semicolons. This feature streamlines your workflows by consolidating related operations into a single, easily manageable unit.

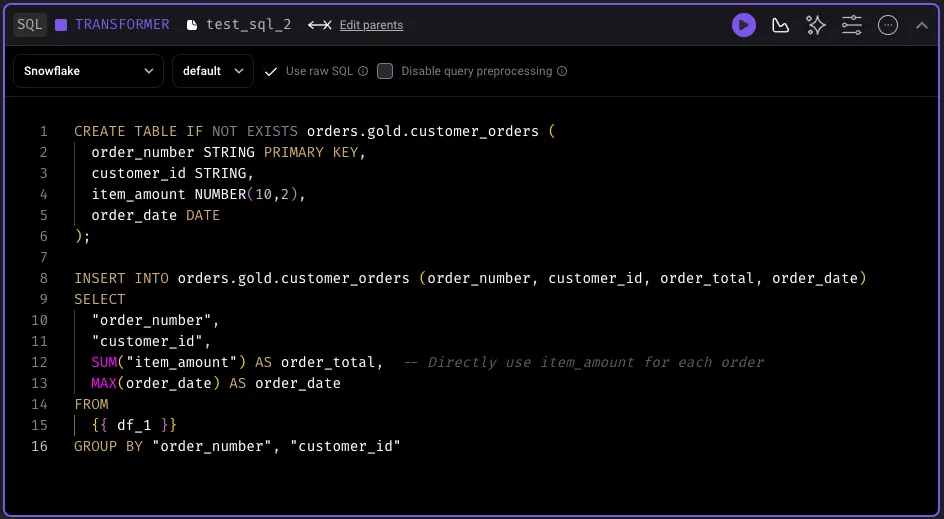

This example demonstrates how you can create a table, populate it with summarized data, and then update specific records, all within a single SQL Block.

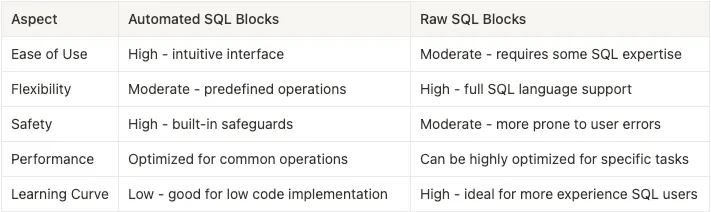

While automated SQL Blocks offer a user-friendly approach to many data transformation tasks, raw SQL mode provides the flexibility to tackle more intricate challenges. Here’s a comparison of the two approaches:

Understanding the strengths and limitations of both approaches, will help you determine the most suitable option for your specific use cases.

Mastering Mage SQL Blocks is a journey that transforms you from a SQL novice to a data sorcerer. By harnessing the power of flexible write policies, seamless upstream data integration, raw SQL capabilities, and advanced optimization techniques, you’ll be equipped to tackle the most complex data transformation challenges.

As you continue to explore and experiment with Mage SQL Blocks, remember that the key to success lies in balancing the platform’s automated features with your own SQL expertise. Embrace the opportunities presented by this powerful tool, and you’ll find yourself at the forefront of modern data engineering, capable of crafting efficient, scalable, and robust data pipelines.

The future of data transformation is here, and with Mage SQL Blocks, you’re well-prepared to lead the charge into this exciting new era of data engineering. To put your newfound knowledge into action check out get started with the open source version of

, or sign up for

, now in private beta.
